Recovery Board Mount.
A two-part bracket that carries up to four recovery boards on your Novaa rack. Set the spacing to suit your boards, pin them on, lock them down.
Boards on the outside.
Cabin space back.
Recovery boards are bulky, filthy after a trip, and always in the way. This puts them on the back of the rig where you can actually get to them.
Two parts, adjustable
Set the spacing to suit what you run — fits MAXTRAX Lite, Mini and Xtreme.
Four pins in the box
Boards slide straight on and pin down. Every pin has the standard locking hole, so a padlock goes straight through.
Moves along the T-slot
Mount it on the side or across the face, and shift it when your build changes.
Two bolts a side.
~5 MIN · 1 PERSON · SPANNER
Bolt the brackets on
Each bracket takes two M8 bolts into the T-slot. Set the spacing to suit your boards before you nip them up.

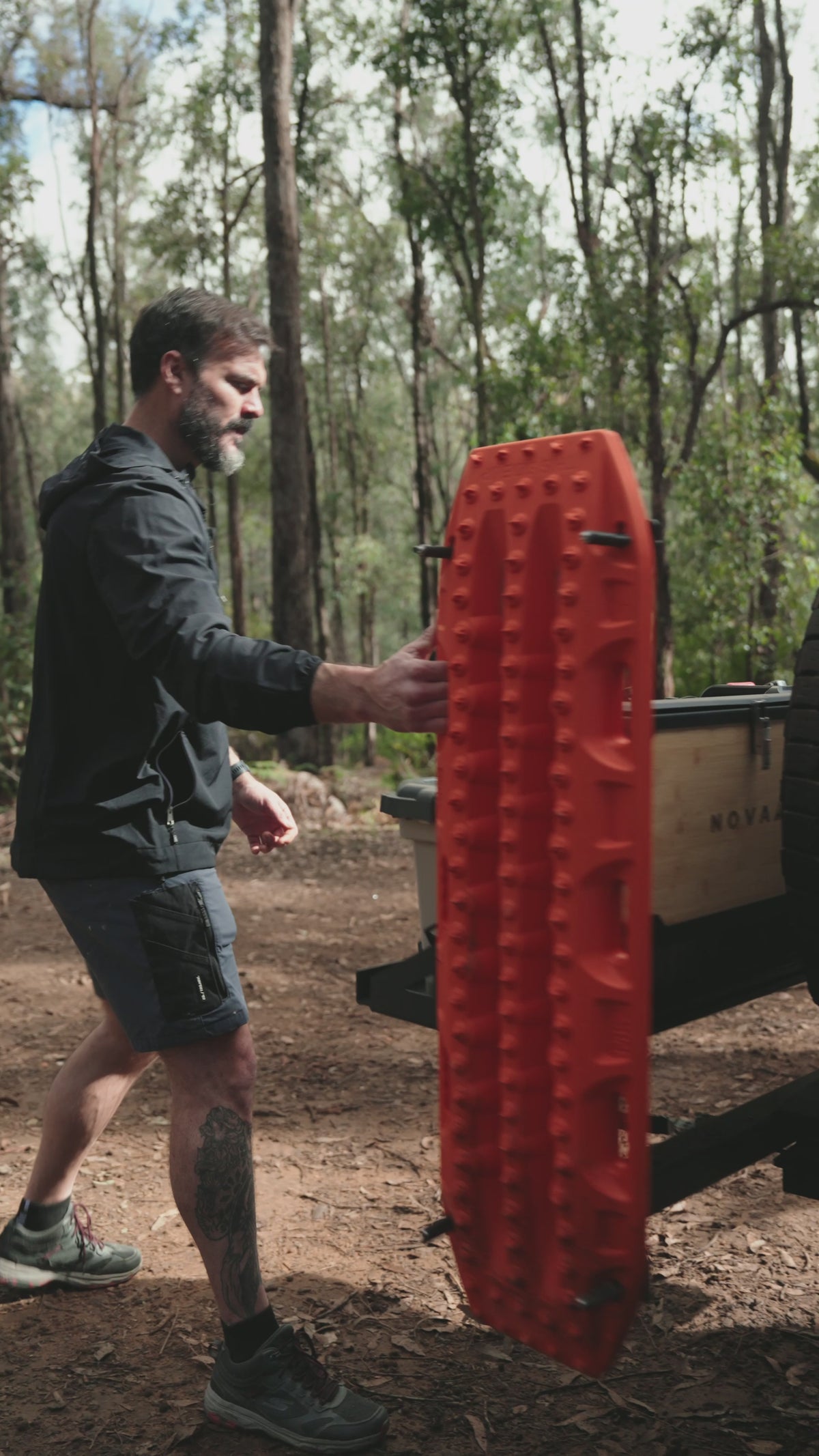

Load and pin
Slide the boards on and drop the four pins through. Padlock them if you're leaving the rig.
The numbers, all in one spot.
Confirmed against the product master spec. If a figure you need isn't here, send us a message — we won't guess.
Recovery board mount
- Board capacity
- 4 boards
- Fits
- MAXTRAX Lite, Mini and Xtreme
- Pins
- 4 included, standard locking hole
- Mounting
- 2 × M8 bolts per bracket, into the T-slot
- Weight
- 4 kg
- Packed size
- 45 × 35 × 10 cm
System
- Total system load
- 150 kg
- Per cargo carrier
- 50 kg
- Tow rating retained
- 3.5 t
- Install
- ~10 min, no cutting or drilling
- Fitment
- Any 50 mm hitch + 800 mm door clearance
Build & warranty
- Finish
- Powder-coat black
- Warranty
- Lifetime fixable
- Design
- Designed in Australia
Common questions.
Which recovery boards does it fit?
MAXTRAX Lite, Mini and Xtreme. The bracket is two parts, so you set the spacing to suit the board you run.
How many boards will it hold?
Four. The pins are sized for four standard MAXTRAX, and four pins come in the box.
Can I lock the boards on?
Yes. Every pin has the standard locking hole, so a padlock or cable lock goes straight through.
Where does it mount?
Anywhere along the T-slot on your Novaa rack — on the side, or across the face if you're not running other gear there. Moving it later is just two bolts a side.
